Vortex Powerfans VAT Series Inline Fans

Vortex Powerfans VAT series inline fans are axial in-line fans ideal for boosting airflow. These compact, powerful and quiet fans come completely wired with junction box, strain relief and power cord. Light weight and easy to install, they are fluted on both ends to ease connection to ducting.

  • Available in duct diameter from 4" to 10"
  • Airflow capacity from 65 to 1120 CFM
  • 120 VAC.  Power cord included
  • Can be mounted in any position
  • Not speed controllable
  • Either plastic or metal blades depending on model
  • 1-year warranty
model description usually ships price QTY
VAT400 Vortex VAT Series inline tube axial fan. 115V/1PH/60Hz. 4 inch. 66 CFM. 1 Day. In-stock $28.00
VAT800 Vortex VAT Series inline tube axial fan. 115V/1PH/60Hz. 8 inch. 332 CFM. 1 Day. In-stock $38.00
VAT1000 Vortex VAT Series inline tube axial fan. 115V/1PH/60Hz. 10 inch. 411 CFM. 1 Day. In-stock $54.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

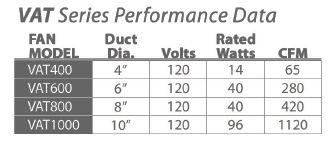

Vortex VAT Series Specifications

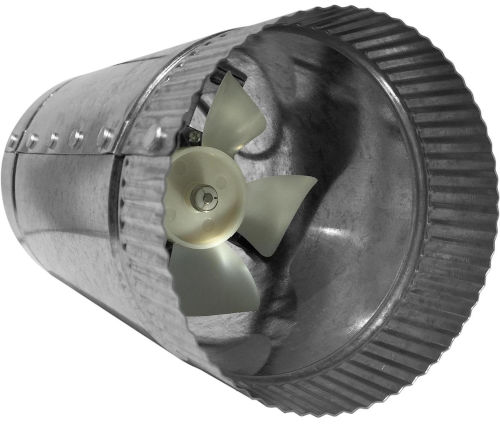

VAT400 Fan

Vortex VAT400

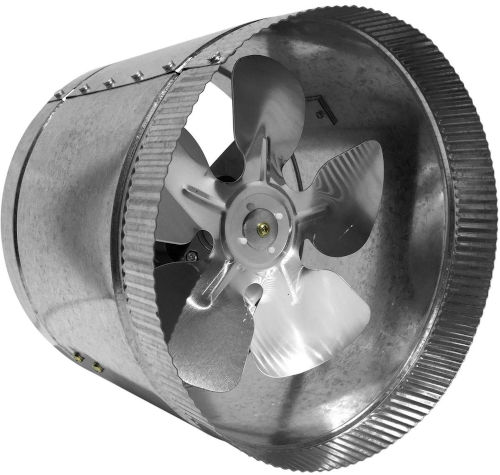

VAT800 Fan

Vortex VAT800

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What is the maximum airflow temperature for the VAT400?
A:   Max airflow temps is 140F for this series.

       Asked on 2023-04-05 by Pliny
#2 Q:   Can I get the installation instructions for the VAT1000?
A:   The installation manual is now available for download from the LINKS tab.

       Asked on 2022-11-20 by JC
#3 Q:   Hi, How is this fan switch?Can I find a fan with start when detect a flow in the duct and then boost the flow?
A:   This is just a fan and the cord. There is no switch included. You can use a product like the Suncourt DS100 or a pressure switch. https://www.hvacquick.com/products/residential/AirFlow-Boosting/Inline-Air-Booster-Fans/Suncourt-Duct-Booster-Fans-Thermostat

       Asked on 2022-02-10 by RPG
#4 Q:   What is the length of the vat600 fan?
A:   It is 7.25 inches in total, with 1 inch of that being crimped and would slide into the pipe it connects to.

       Asked on 2021-11-30 by Gerald
#5 Q:   Does the vat600 have metal blades or plastic?
A:   6 inch VAT has metal blades.

       Asked on 2021-11-30 by Gerald
#6 Q:   how long is the pre-installed power cord (VAT-600)? what is the length of the section?
A:   The section is 7.25 inches long. The power cord is 5 feet.

       Asked on 2021-10-30 by Mark
#7 Q:   Are your Vortex VAT fans rated at constant duty
A:   Yes, constant duty is fine.

       Asked on 2021-01-06 by Kenneth
