Tjernlund HS Series Side Wall Power Venters

Used for Side wall venting residential/light commercial natural gas, LP or oil fired equipment including: Furnaces, boilers, water heaters and unit heaters.

All models feature the new UC1 Universal Control and a diaphragm Fan Proving Switch safety interlock which will shut down the heating equipment if a venting malfunction occurs. Built-in adjustable damper also allows regulation for maximum combustion efficiency. UC1 Universal Control features include: adjustable pre and post-purge settings, LED Status/diagnostic indicators, Fan Prover switch monitoring. Interlocks with any 24-120 VAC burner control circuit and also includes "dry" contact actuation option. Easily interlock multiple appliances with the MAC-Series multiple appliance controls.

model description usually ships price QTY
HSJ Tjernlund HSJ side wall power venter. For gas or oil appliances. Includes a fan proving switch and the UC1 universal control for 24V, 115V or dry contact actuation. 1 Day. In-stock $368.00
HS1 Tjernlund HS1 side wall power venter. For gas or oil appliances. Includes a fan proving switch and the UC1 universal control for 24V, 115V or dry contact actuation. 1 Day. In-stock $368.00
HS2 Tjernlund HS2 side wall power venter. For gas or oil appliances. Includes a fan proving switch and the UC1 universal control for 24V, 115V or dry contact actuation. Long Backorder $522.00
UC1 Tjernlund UC1 Bruner Interlock Control Module. Interlocks with any 24-120 VAC burner control circuit and also includes dry contact actuation option. Long Backorder $154.00
MAC1E Tjernlund UC1 accessory. Use with UC1 to add 1 additional appliance. 1 Day. In-stock $168.00
WHKE Tjernlund UC1 accessory. Use with UC1 or MAC1E to add millivolt water heater. 1 Day. In-stock $177.00
VH1-4 Tjernlund VH1 power venter hood. Used for terminating horizontally vented appliances. Vent hood features heavy duty, corrosion resistant aluminum construction with an additional heat shield for built in clearances from combustibles. FOR 4 INCH PIPE. 1 Day. In-stock $145.00
VH1-6 Tjernlund VH1 power venter hood. Used for terminating horizontally vented appliances. Vent hood features heavy duty, corrosion resistant aluminum construction with an additional heat shield for built in clearances from combustibles. FOR 6 INCH PIPE. Long Backorder $158.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

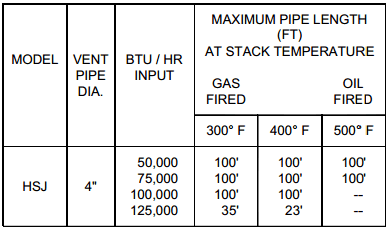

tjernlund hsj power venter

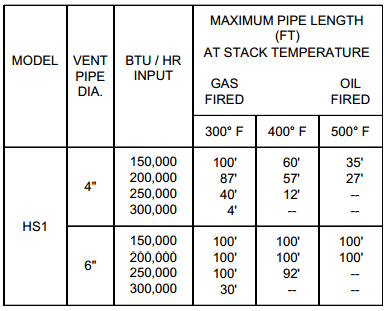

tjernlund hs1 power venter

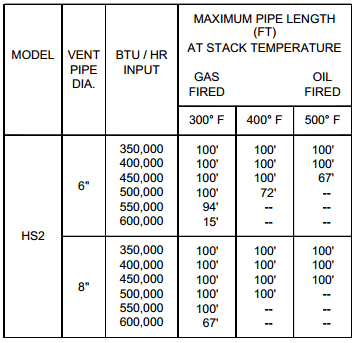

tjernlund hs2 power venter

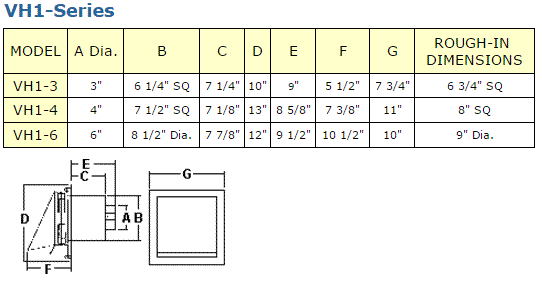

tjernlund VH1 hoods

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   if I buy this kit do I need anything else to hook this up to my water heater, I am switching from a chimney to side vent out the house.
A:   This kit does have the interlock and fan prover so it should have what you need. Circumstances differ of course, but the main mechanical bits are there.

       Asked on 2014-08-10 by philip
