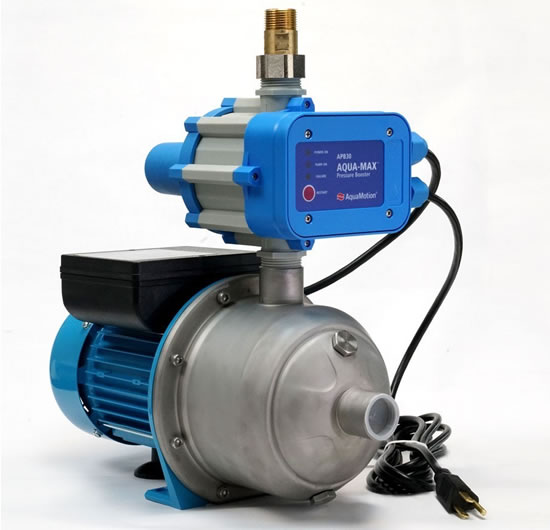

AquaMotion Aqua-Max APB30 Pressure Booster
Aqua-Max™ APB30 boosts domestic water pressure in residential homes by 30 psi to all fixtures and sprinkler heads. Use it where the city/ town/ well water delivers insufficient pressure.
Automatically starts when water is drawn & stops when demand ends. No short cycling. Simple installation plumbs into incoming water line & plugs into a 115V outlet. Stainless steel pump construction for corrosion resistance & reliability. Built in check valve eliminates back flow of cold to main. Mounting base can be attached to floor or wall.

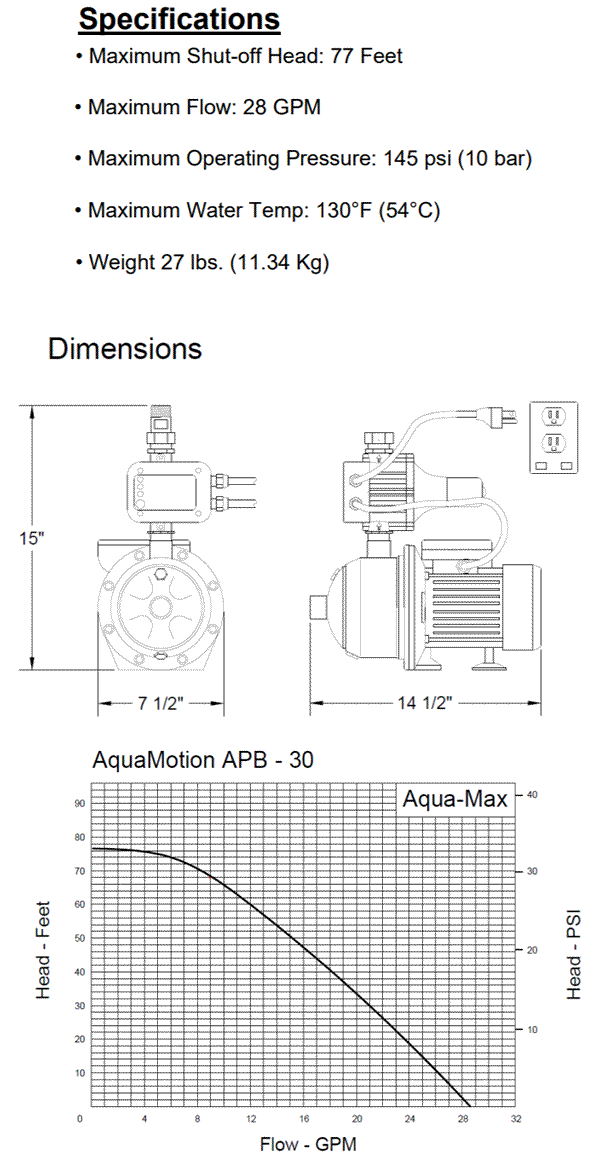

• Maximum Shut-off Head: 77 Feet
• Maximum Flow: 28 GPM
• Maximum Operating Pressure: 145 psi
• Maximum Water Temp: 130°F
• Quiet totally enclosed fan cooled motor
• Connections: Inlet 1", outlet 3/4" male tailpiece with union on 1" connection
 |
Do you have questions about the products on this page? Click on the ? image on the left or this link to ask us your questions! |
| #1 | Q: How long is the power cord? A: The cord is 6 feet. Asked on 2023-01-19 by John |
|---|---|
| #2 | Q: Is there a minimum inlet pressure needed for this booster pump? A: There was nothing specific listed so I called the factory and was told it must have some positive pressure of 2-3 PSI and have a flooded prime. Asked on 2023-01-19 by John |
| #3 | Q: What is the factory guarantee for the Aquamotion APB-30? A: AquaMotion has a 1-year warranty on the booster pump. Asked on 2021-10-04 by Patrick |
-
