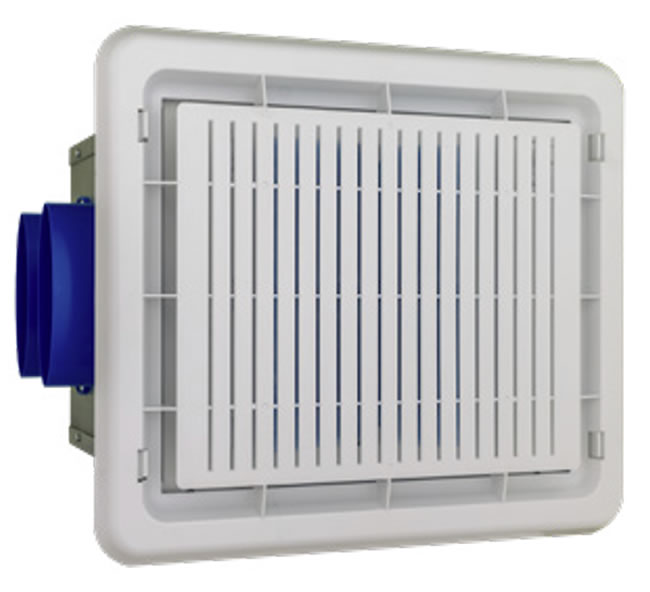

S&P TReEG110 Evergreen Energy Recovery Ventilator with EC Motors

The S&P Evergreen™ low-profile ERVs fit inside most ceiling joist or ceiling cavity configurations. Instead of circular openings, the series utilizes 5-inch oval exhaust and supply connections to simplify installation. Maintenance is straightforward, requiring only periodic change of the easily accessible return air and outdoor air filters.

Engineered with high-efficiency EC motorized impellers and static plate core, Evergreen ERVs exchange heat and humidity to temper incoming air without cross-contamination. This series optimizes indoor air quality (IAQ) in single-point exhaust applications such as bathrooms, laundry rooms, apartments, and condominiums.

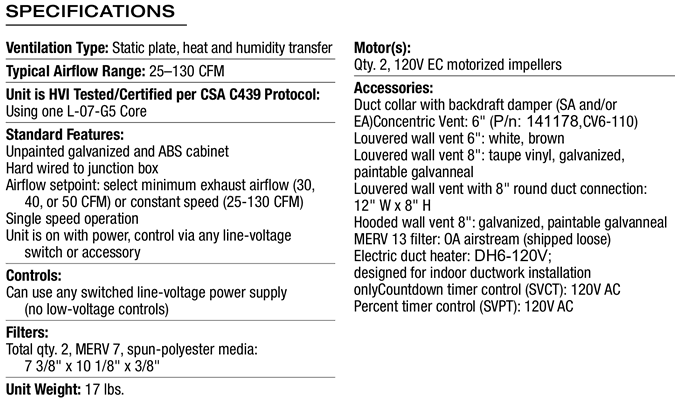

• Ventilation type: static plate, heat and humidity transfer
• Airflow set point: select minimum exhaust airflow (30, 40, or 50 CFM) or constant speed (25-130 CFM)
• Unit is HVI tested/certified per CSA C439 protocol: using one L-07-G5 core
• Motors: 2 qty 120V EC motorized impellers
• Unpainted galvanized and ABS cabinet
• Hard wired to junction box
• Single speed operation
• Controls: Unit is on with power, control via any line-voltage power supply. No low-voltage controls
• Filters: Total qty. 2, MERV 7, spun-polyester media: 7 3/8" x 10 1/8" x 3/8"
