Lifebreath MAX Series HRV Heat Recovery Ventilators

The Lifebreath® HRV allows two streams of air to pass on either side of an aluminum heat exchange core. In the winter, the core transfers heat from stale outgoing air to fresh incoming air with virtually no loss of heat to the outside. During the summer, the HRV works in reverse to keep your home cool and fresh.

The included Lifestyle Digital Controllers feature 4 operating modes and 5 fan speeds to meet changing household needs. The built-in dehumidistat automatically reduces indoor humidity levels in the winter by activating the fan.

model description usually ships price QTY
155 MAX Lifebreath HRV. Part 93-155MAX. 146 cfm @ 0.3 in. w.g. Recirculating defrost. Includes DXPL03 digital controller. SHIPS FREIGHT. 4-5 Weeks $1166.70
195 DCS Lifebreath HRV. Part 93-195DCS. 181 cfm @ 0.3 in. w.g. Damper defrost and DUAL cores. Includes DXPL03 digital controller. SHIPS FREIGHT. 4-5 Weeks $1820.00
205 MAX Lifebreath HRV. Part 93-205MAX. 183 cfm @ 0.3 in. w.g. Recirculating defrost. Includes DXPL03 digital controller. SHIPS FREIGHT. 4-5 Weeks $1186.70
267 MAX Lifebreath HRV. Part 93-267MAX. 267 cfm @ 0.3 in. w.g. Recirculating defrost. Includes DXPL03 digital controller. SHIPS FREIGHT. 4-5 Weeks $1733.30

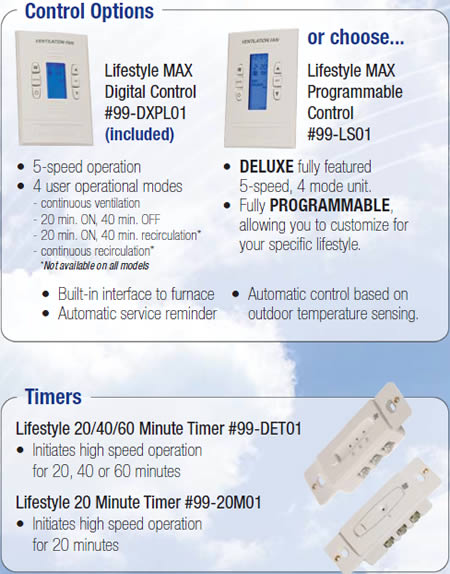

99-DXPL03 Lifebreath digital wall controller. 5 fan speed settings, electronic dehumidistat, 20/40/60 high speed override button. Five selectable modes of operation: continuous ventilation, 20min ventilation/ 40min recirculation, 20min ventilation/ 40min off, 10min ventilation/ 50min off, continuous recirculation. Compatible with wireless timer 99-DET02. 1 Day. In-stock $83.30
99-DET01 Lifebreath optional 20/40/60 minute timer. Initiates high speed operation for 20, 40, or 60 minutes. 1 Day. In-stock $30.00
99-DET02 Lifebreath wireless timer. Initiates high speed ventilation - 20,40 or 60 minutes. Estimated range of 40 ft. Compatible with repeater (99-RX02) for greater range. 1 Day. In-stock $40.00
99-RX02 Lifebreath repeater. Extends range between wireless timer (DET02) and the main controller. Plugs into outlet. 1 Day. In-stock $40.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

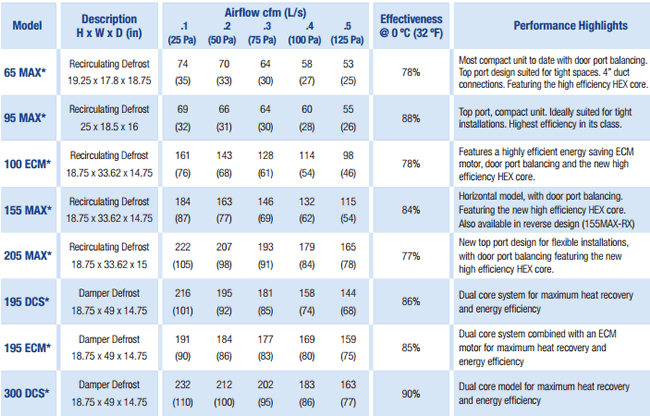

lifebreath max series specs

lifebreath max series

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What are se units to consider for Arkansas. My home is 2500 sq ft and I have condensation issues mainly from January to March.
A:   Assuming a minimum air exchange rage of 0.35 AC/hr, you need 131 cfm or more. 155 MAX or 205 MAX are a couple of options. We would lean towards the larger ones since the cost difference is small.

       Asked on 2019-02-23 by TMA
#2 Q:   Is the 99-DXPL02 compatible with the old controller 15 200 max unit
A:   From mid 2009 and on, they should be compatible. We can provide 100% certainty only if we have the serial number to check date and production codes.

       Asked on 2018-12-01 by Jason
#3 Q:   I am installing two air handler units for a family member and they want to install Sam HRV unit for fresh air. This is a 3100 sq.ft. house with a 2 & 4 ton unit. Could I use one unit for whole house piped into both units? Or should I installed one unit per system?
A:   Our suggestion would be 1 HRV per air handler for a number of reasons: balancing the HRV between the 2 different size air handlers, different run times for the air handlers, extra piping required when connecting to 2 units in different areas, etc.

       Asked on 2018-09-25 by Neil
#4 Q:   We have radiant heat (i.e. no forced air furnace) so we do not have supply and return duct work. How would we circulate air in our house?
A:   You would have to install a dedicated ducting system for the HRV. See FULLY DEDICATED section in the installation manual:

       Asked on 2014-09-25 by Bindle
#5 Q:   We have moisture problems on our windows in the winter time after a recent remodel. We have replaced our furnace and we wondering if the Lifebreath HRV will help with the condensation on the windows. We also heat with wood in a portion of the house.
A:   HRVs are great at helping the house get fresh air to minimize condensation as well as helping to distribute the wood heat throughout the house.

       Asked on 2013-09-06 by Kalispell, mt
#6 Q:   I have 4 rooms side by side each at 112sq ft would the 95max supply enough air flow for this
A:   That would be plenty. Your specific needs are 37cfm for that area.

       Asked on 2013-06-02 by charles
#7 Q:   What do the timers do since the unit already includes a controller?
A:   Timers switch the unit into high speed mode for the selected 20/40/60 minutes. The 20M01 timer only has a 20 minute button.

       Asked on 2013-04-16 by Ed
#8 Q:   Can I use both the included 99-DXPL01 and the 99-LS01 controllers on the same unit?
A:   No. Only 1 controller per MAX HRV. The standard included controller is great in our opinion.

       Asked on 2013-04-16 by Sandy
