AquaMotion AMH1K-7ODRXT1 Outdoor On Demand TANKLESS Water Recirculation System

AQUA-SHIELD™ on-demand circulator for outdoor installation. Installs on a TANKLESS HEATER WITHOUT A BUILT-IN PUMP and no dedicated return line. For up to 600 Ft. of total pipe length and all tankless minimum flow rates.

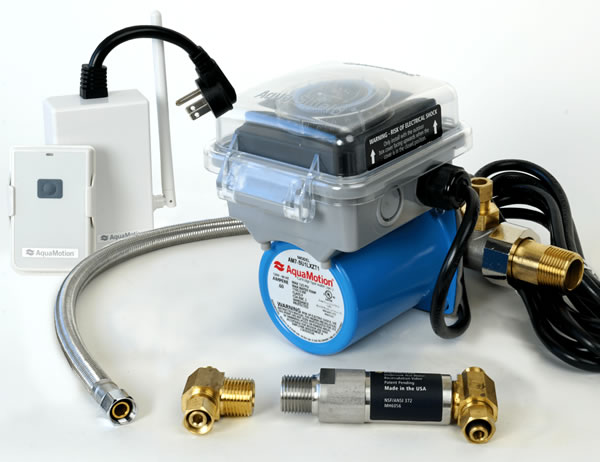

Stainless high speed circulator, flanged, 10 ft. line cord, outdoor enclosure, and anti-tampering locking device tab. Timer set to “On” only. The included AMK-ODR bypass valve kit (on/off 95° – 104° F) installs under the furthest fixture. Meets CA Title 24 with On Demand.  Includes AMK-WB ON Demand wireless push button and receiver.

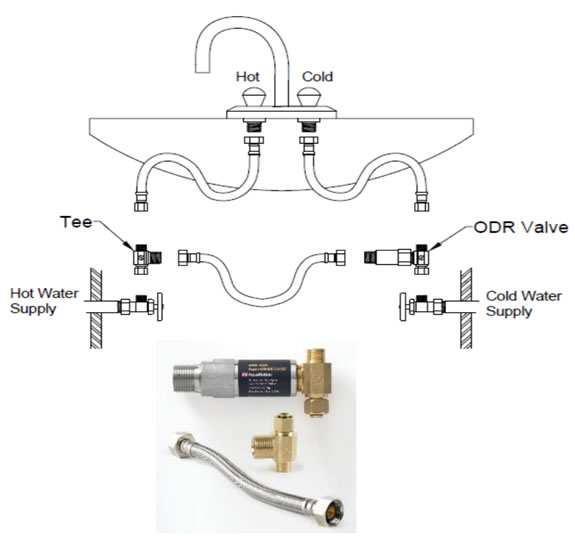

The AquaMotion AMK-ODR valve is a small, quiet, lead free stainless/brass hot water recirculation valve for single pipe systems.  It installs at the fixture furthest from the tankless hot water heater. When hot water is called by the on-demand controls, the circulator forces the cooled hot water in the hot water line into the cold supply line which returns it to the hot water heater. As hotter water reaches the ODR valve, it closes until a 95°F temperature is reached at which point the valve automatically adjusts to maintain this temperature.

NOT TO BE INSTALLED IN AREAS WHERE PUMPS SUBJECT TO FREEZING

model description usually ships price QTY
AMH1K-7ODRXT1 Aquamotion AQUA SHIELD Circulator for outdoor installation. Installs on TANKLESS HEATER WITHOUT BUILT-IN PUMP. For up to 100 ft. of total pipe length and tankless flow requirement of .5 GPM or less. Stainless single speed circulator with union connections, 10 ft. line cord, outdoor enclosure. AMK-ODR bypass valve kit installs under fixture. Includes AMK-WB on demand. Performance: 11x14 (Ft x GPM). 2-3 Days $667.40
AMK-WBR Aquamotion ON-DEMAND additional wireless button with wall mounting bracket for AMK-WB kit. 1 Day. In-stock $53.50
AMK-MSR Aquamotion ON-DEMAND additional wireless motion detector for AMK-MS kit. 1 Day. In-stock $53.50
AMK-WSR Aquamotion ON-DEMAND additional wireless rocker switch to turn on pump. Receiver not included. 1 Day. In-stock $54.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



AquaMotion Ourdoor Pump Selection Guide



AquaMotion amh1k-7odrxt1 pump

AquaMotion amh1k-7odrxt1 pump valve

AquaMotion On Demand Accessories
