AquaMotion AMH1K-7ODRXZT1 Outdoor TANKLESS Water Recirculation System

Aqua-Shield™ circulator for outdoor installation. Installs on tankless heater without built-in pump with no dedicated return line. For up to 100 ft. of total pipe length and tankless flow requirement of .5 GPM or less. Timer controlled.

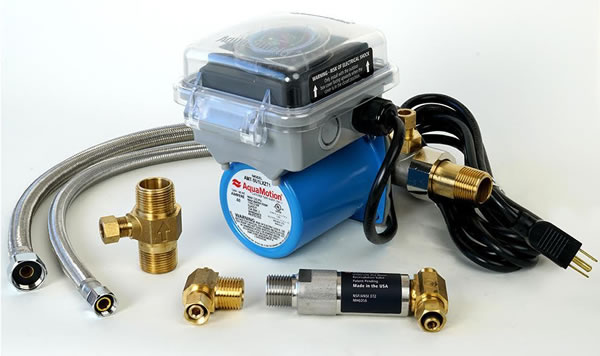

AM7-SU1XZT1 stainless union circulator with 3/4″ male tailpieces, outdoor enclosure, water/sprinkler/bug/freeze protected, anti-tampering locking device tab, built-in timer, 10 ft. line cord, pump bypass connection, check, flow control, hose, bypass tee 3/4″ FNPT x 3/4″ MNPT x 3/8″ OD Compression. AMK-ODR bypass valve kit: Bypass valve, hose, tee.

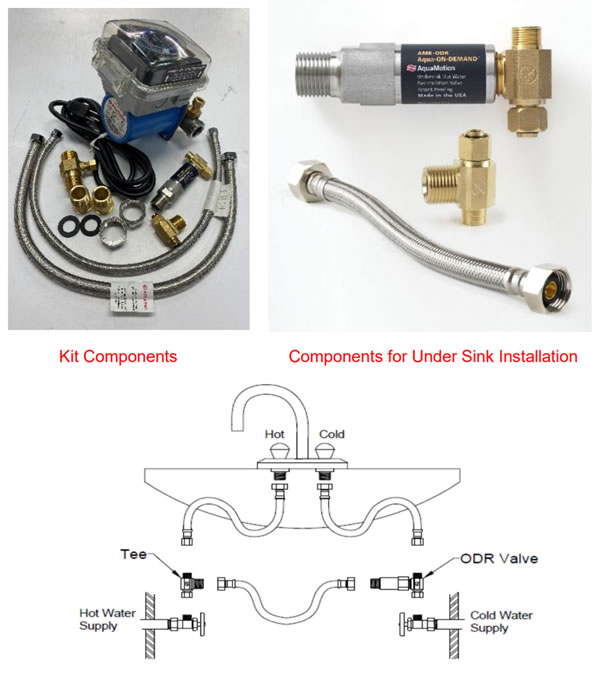

The AquaMotion AMK-ODR valve is a small, quiet, lead free stainless/brass hot water recirculation valve for single pipe systems.  It installs at the fixture furthest from the tankless hot water heater. When hot water is called by the timer/temp controls, the circulator forces the cooled hot water in the hot water line into the cold supply line which returns it to the hot water heater. As hotter water reaches the ODR valve, it closes until a 95°F temperature is reached at which point the valve automatically adjusts to maintain this temperature.

NOT TO BE INSTALLED IN AREAS WHERE PUMPS SUBJECT TO FREEZING

model description usually ships price QTY
AMH1K-7ODRXZT1 Aquamotion AQUA SHIELD circulator for outdoor installation. Installs on TANKLESS HEATER WITHOUT BUILT-IN PUMP. For up to 100 ft. of total pipe length and tankless flow requirement of .5 GPM or less. AM7-SU1LXZT1 stainless union circulator with 3/4 inch male tailpieces, outdoor enclosure, 10 ft line cord, pump bypass connection, check, flow control, bypass tee 3/4 inch FNPTx3/4 inch MNPTx3/8 inch OD compression. AMK-ODR bypass valve kit: Bypass valve, hose, tee. Union kit UK75T 3/4 inch threaded male fittings included. Performance: 11x14 (Ft x GPM). 1 Day. In-Stock $609.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



AquaMotion Ourdoor Pump Selection Guide



AquaMotion amh1k-7odrxzt1 pump

AquaMotion amh1k-7odrxzt1 specifications

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

AquaMotion AMH1K-7ODRXT1 Outdoor On Demand TANKLESS Water Recirculation System

Outdoor ON-DEMAND tankless recirc system. For up to 600 ft. of total pipe length and tankless flow requirement of .5 GPM or more. On-demand switch controlled.

AquaMotion AMH1K-RODRXT1 Outdoor On Demand TANKLESS Water Recirculation System

Outdoor ON-DEMAND tankless recirc system. For up to 100 ft. of total pipe length and tankless flow requirement of .5 GPM or less. On-demand switch controlled.

AquaMotion AMH2K-RX Dedicated Return Line Outdoor TANKLESS Water Recirculation

For outdoor tankless installation with a dedicated return line and with MORE than .5 GPM flow requirement. Up to 600 ft. of total pipe length.

AquaMotion AMH2K-7X Dedicated Return Line Outdoor TANKLESS Water Recirculation

For outdoor tankless installation with a dedicated return line and with LESS than .5 GPM flow requirement. Up to 250 ft. of total pipe length.
